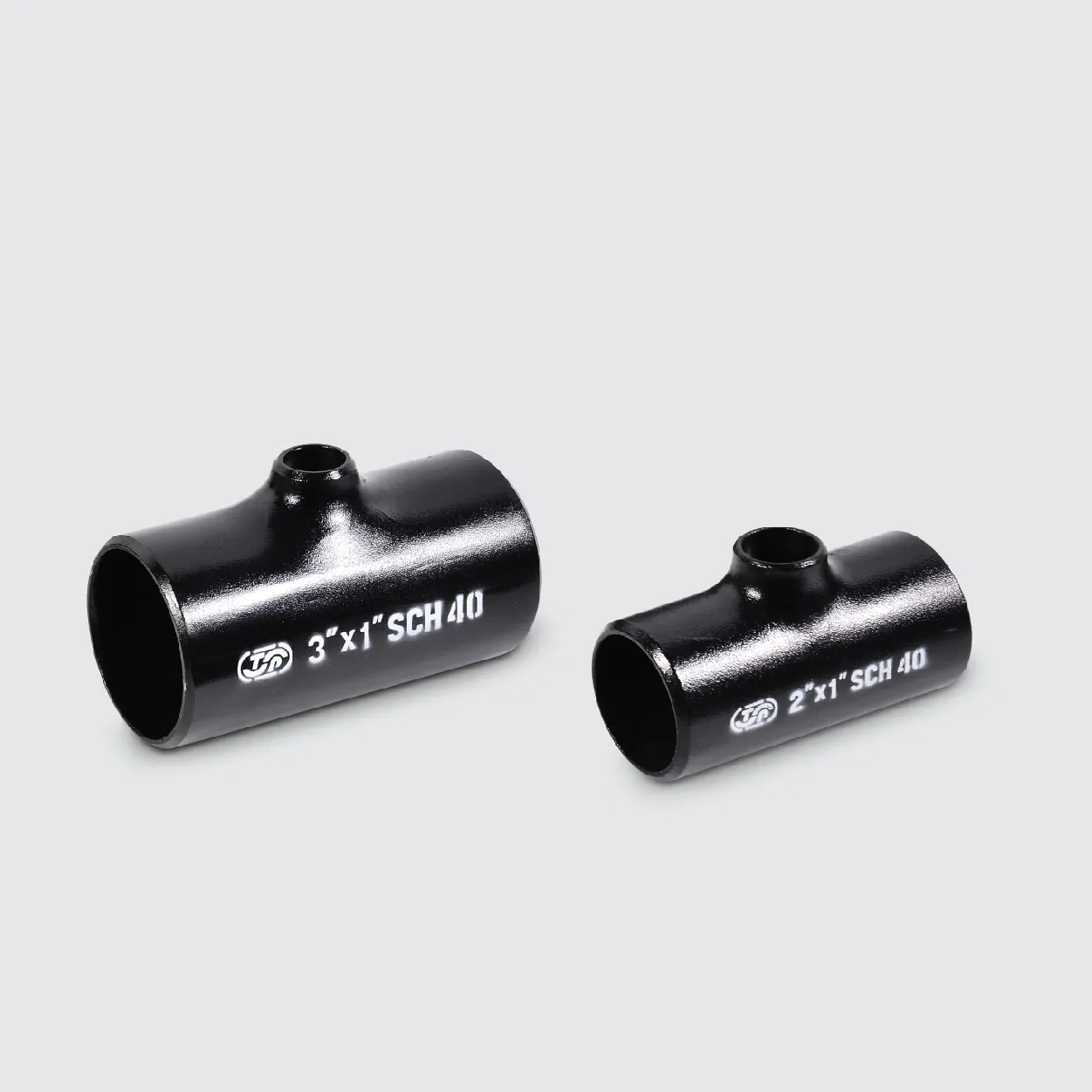

Tees

Nominal Pipe Size (inch)	REDUCERS TEE (mm)					Approx weight (kg)

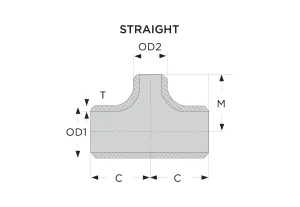

Nominal Pipe Size (inch)	OD	ID	T	C	M	Approx weight (kg)
1/2 × 1/2 × 3/8	21.33	17.14	2.77	25.40	25.40	0.09
3/4 × 3/4 × 1/2	26.67	21.33	2.87	28.57	28.57	0.11
1 × 1 × 3/4	33.40	26.67	3.38	38.10	38.10	0.22
1 × 1 × 1/2	33.40	21.33	3.58	38.10	38.10	0.21
1 1/4 × 1 1/4 × 1	42.16	33.40	3.68	47.62	47.62	0.38
1 1/4 × 1 1/4 × 3/4	42.16	26.67	3.56	47.62	47.62	0.37
1 1/4 × 1 1/4 × 1/2	42.16	21.33	3.56	47.62	47.62	0.36
1 1/2 × 1 1/2 × 1 1/4	48.26	42.16	3.68	57.15	57.15	0.56
1 1/2 × 1 1/2 × 1	48.26	33.40	3.68	57.15	57.15	0.54
1 1/2 × 1 1/2 × 3/4	48.26	26.67	3.68	57.15	57.15	0.52
1 1/2 x 1 1/2 x 1/2	48.26	21.33	3.68	57.15	57.15	0.51
2 × 2 × 1 1/2	60.33	48.26	3.91	63.50	60.32	0.77
2 × 2 × 1 1/4	60.33	42.16	3.91	63.50	57.15	0.75
2 × 2 × 1	60.33	33.40	3.91	63.50	50.80	0.73
2 × 2 × 3/4	60.33	26.67	3.91	63.50	44.50	0.71
2 1/2 × 2 1/2 × 2	73.03	60.33	5.16	73.03	69.85	1.50
2 1/2 × 2 1/2 × 1 1/2	73.03	48.26	5.16	73.03	66.67	1.46
2 1/2 × 2 1/2 × 1	73.03	33.40	5.16	73.03	57.15	1.42
3 × 3 × 2 1/2	88.90	73.03	5.49	85.72	82.55	2.15
3 × 3 × 2	88.90	60.33	5.49	85.72	76.20	2.05
3 × 3 × 1 1/2	88.90	48.26	5.49	85.72	73.02	2.02
3 × 3 × 1 1/4	88.90	42.16	5.49	85.72	69.85	2.00
3 1/2 × 3 1/2 × 3	101.60	88.90	5.74	95.25	92.07	2.83
3 1/2 × 3 1/2 × 2 1/2	101.60	73.03	5.74	95.25	88.90	2.78
3 1/2 × 3 1/2 × 2	101.60	60.33	5.74	95.25	82.55	2.68
3 1/2 × 3 1/2 × 1 1/2	101.60	48.26	5.74	95.25	79.38	2.65
4 × 4 × 3	114.30	88.90	6.02	104.77	98.42	3.61
4 × 4 × 2 1/2	114.30	73.03	6.02	104.77	95.25	3.56
4 × 4 × 2	114.30	60.33	6.02	104.77	88.90	3.46
4 × 4 × 1 1/2	114.30	48.26	6.02	104.77	85.73	3.43
5 × 5 × 4	141.30	114.30	6.55	123.82	117.48	5.76
5 × 5 × 3 1/2	141.30	101.60	6.55	123.82	114.30	5.70
5 × 5 × 3	141.30	88.90	6.55	123.82	111.12	5.64
5 × 5 × 2 1/2	141.30	73.03	6.55	123.82	107.95	5.59
5 × 5 × 2	141.30	60.33	6.55	123.82	104.77	5.50
6 × 6 × 5	168.30	141.30	7.11	142.87	136.52	8.43
6 × 6 × 4	168.30	114.30	7.11	142.87	130.17	8.28
6 × 6 × 3 1/2	168.30	101.60	7.11	142.87	127.00	8.22
6 × 6 × 3	168.30	88.90	7.11	142.87	123.82	8.16
6 × 6 × 2 1/2	168.30	73.03	7.11	142.87	120.65	8.11
8 × 8 × 6	219.10	168.30	8.18	177.80	168.27	15.70
8 × 8 × 5	219.10	141.30	8.18	177.80	161.93	15.50
8 × 8 × 4	219.10	114.30	8.18	177.80	155.58	15.40
8 × 8 × 3 1/2	219.10	101.60	8.18	177.80	152.40	15.30
8 × 8 × 3	219.10	88.90	8.18	177.80	152.40	15.10
10 × 10 × 8	273.10	219.10	9.30	215.90	203.20	26.40
10 × 10 × 6	273.10	168.30	9.30	215.90	193.68	26.20
10 × 10 × 5	273.10	141.30	9.30	215.90	190.50	26.10
10 × 10 × 4	273.10	114.30	9.30	215.90	184.15	25.90
12 × 12 × 10	323.90	273.10	10.30	254.00	241.30	41.10
12 × 12 × 8	323.90	219.10	10.30	254.00	228.60	40.70
12 × 12 × 6	323.90	168.30	10.30	254.00	219.08	40.50
12 × 12 × 5	323.90	141.30	10.30	254.00	215.90	40.40
14 × 14 × 12	355.60	323.90	11.10	279.40	269.90	53.80
14 × 14 × 10	355.60	273.10	11.10	279.40	257.20	53.20
14 × 14 × 8	355.60	219.10	11.10	279.40	247.70	52.90
16 × 16 × 14	406.40	355.60	12.70	304.80	304.80	76.00
16 × 16 × 12	406.40	323.90	12.70	304.80	295.30	75.30
16 × 16 × 10	406.40	273.10	12.70	304.80	282.60	75.00
18 × 18 × 16	457.20	406.40	14.30	342.90	330.20	107
18 × 18 × 14	457.20	355.60	14.30	342.90	330.20	106
18 × 18 × 12	457.20	323.90	14.30	342.90	320.70	105
20 × 20 × 18	508.00	457.20	15.10	381.00	368.30	141
20 × 20 × 16	508.00	406.40	15.10	381.00	355.60	139
20 × 20 × 14	508.00	355.60	15.10	381.00	355.60	138
20 × 20 × 12	508.00	323.90	15.10	381.00	346.10	137
24 × 24 × 20	609.60	508.00	17.10	431.80	431.80	181
24 × 24 × 18	609.60	457.20	17.10	431.80	431.00	177
